Cermet trimmer potentiometer, 0.25W power rating, 500kΩ resistance with 10% tolerance. Features 5 turns, SMD/SMT termination, and a sealed Trimpot® 3214 series design. Operates across a wide temperature range from -65°C to 150°C, with a 300V voltage rating. Packaged in tape and reel for surface mount applications.
PackageSMD/SMT
Resistance500kR
Voltage Rating300V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3214W-1-504E technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 3.9mm |
| Height | 0.2inch |
| Length | 4.8mm |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 250mW |
| Military Standard | Not |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Turns | 5 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 500kR |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | Trimpot® 3214 - Sealed |
| Technology | CERMET |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 300V |
| Weight | 0.283g |
| Width | 0.139inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3214W-1-504E Datasheet
Download the complete datasheet for Bourns 3214W-1-504E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

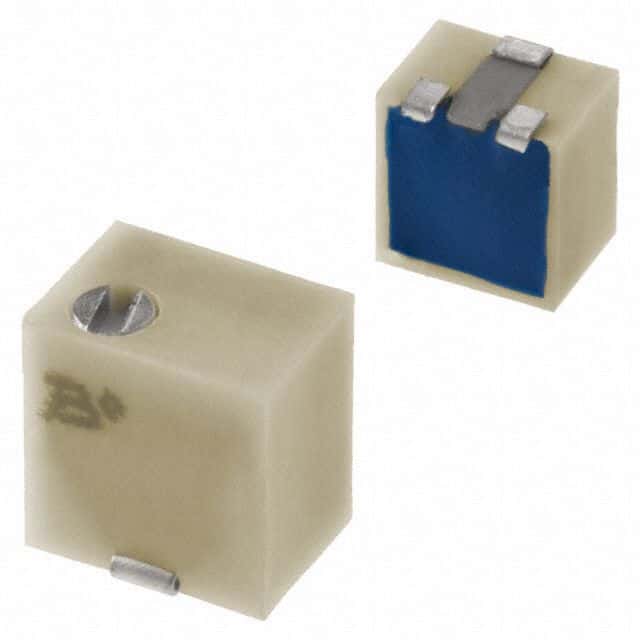

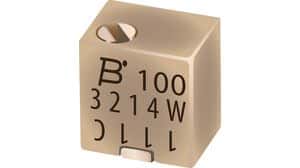

Product Images
