10kR cermet trimmer resistor, 11 turns, 20% tolerance, 1/4W power rating. Features surface mount J-hook termination, 200V DC rated voltage, and operates from -65°C to 150°C. Maximum power dissipation is 125mW. Packaged in tape and reel for automated assembly.
Resistance10kR
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3223J-1-103E technical specifications.
General
| Depth | 4.47mm |
| Length | 3.9mm |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 125mW |
| Military Standard | Not |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Turns | 11 |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | 3223 |
| Technology | CERMET |
| Termination | J-Hook |
| Tolerance | 20% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
| Weight | 0.283g |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3223J-1-103E Datasheet
Download the complete datasheet for Bourns 3223J-1-103E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

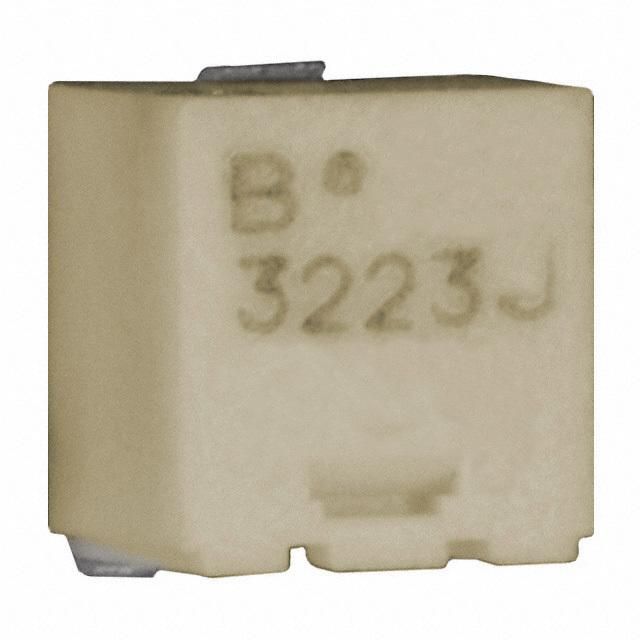

Product Images
