Cermet trimmer potentiometer, 1kΩ resistance with 20% tolerance, rated for 0.125W power dissipation and 300V voltage. Features 11 turns, linear taper, and SMD/SMT termination for surface mounting. Operates across a -65°C to 150°C temperature range. RoHS compliant and packaged on tape and reel.
Resistance1kR
Voltage Rating300V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Bourns 3223W-1-102E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Bourns 3223W-1-102E technical specifications.
General
| Color | Natural |
| Height | 4.16mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Number of Turns | 11 |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 1kR |
| Resistance Tolerance | 20% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | 3223 |
| Taper | Linear |
| Technology | CERMET |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Type | Potentiometer |
| Voltage Rating | 300V |
| Weight | 0.283g |
| Width | 3.52mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3223W-1-102E Datasheet
Download the complete datasheet for Bourns 3223W-1-102E to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

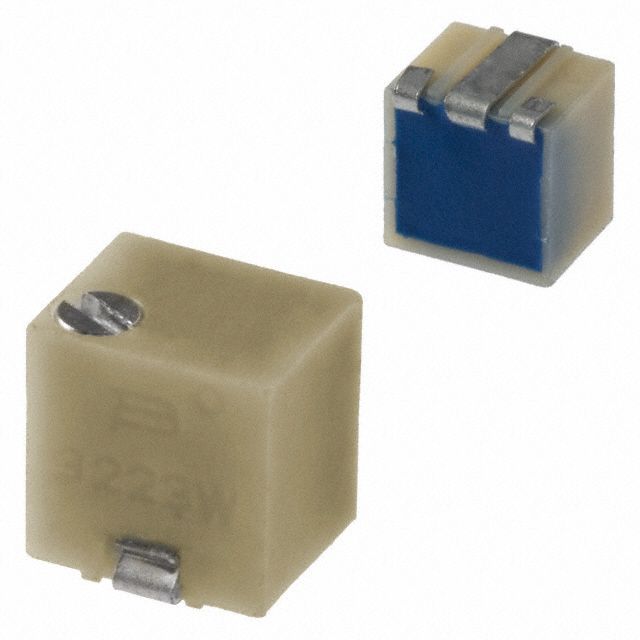

Product Images
