Cermet trimmer potentiometer, 200kR resistance with 20% tolerance. Features a linear taper, 11 turns, and a 300V voltage rating. Surface mountable with J-hook termination, operating from -65°C to 150°C with 125mW max power dissipation. Packaged on tape and reel for efficient assembly.
Resistance200kR
Voltage Rating300V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Bourns 3223W-1-204E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Bourns 3223W-1-204E technical specifications.
General
| Color | Natural |
| Depth | 3.52mm |
| Height | 0.164inch |
| Lead Free | Contains Lead |
| Length | 3.9mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 125mW |
| Military Standard | Not |
| Mount | Surface Mount |
| Number of Turns | 11 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 200kR |
| Resistance Tolerance | 20% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | 3223 |
| Taper | Linear |
| Technology | CERMET |
| Termination | J-Hook |
| Tolerance | 20% |
| Voltage Rating | 300V |
| DC Rated Voltage | 200V |
| Weight | 0.283g |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3223W-1-204E Datasheet
Download the complete datasheet for Bourns 3223W-1-204E to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

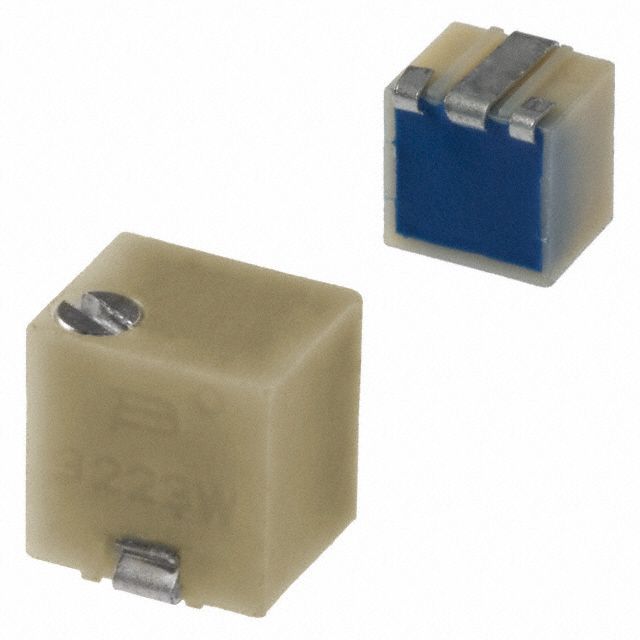

Product Images
