Surface mount cermet trimmer resistor, 20kΩ resistance with 10% tolerance. Features 0.25W power dissipation, 300V voltage rating, and 12 turns for precise adjustment. Operates across a wide temperature range from -65°C to 150°C. This component utilizes gull wing terminations and is packaged on tape and reel, adhering to RoHS compliance.
Resistance20kR
Voltage Rating300V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3224G-1-203E technical specifications.
General
| Depth | 6mm |
| Height | 0.154inch |
| Length | 4.8mm |
| Max Operating Temperature | 150°C |
| Military Standard | Not |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Turns | 11 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 20kR |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | 3224 |
| Taper | Linear |
| Technology | CERMET |
| Termination | Gull Wing |
| Tolerance | 10% |
| Voltage Rating | 300V |
| Weight | 0.283g |
| Width | 0.18inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3224G-1-203E Datasheet
Download the complete datasheet for Bourns 3224G-1-203E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

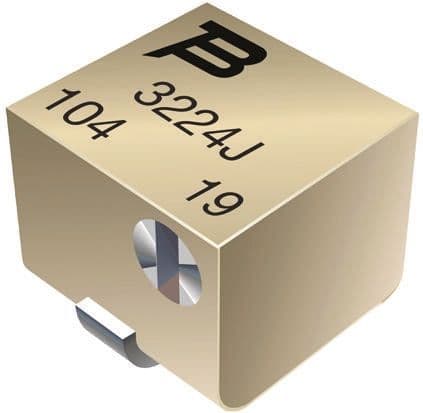

Product Images
