Cermet trimmer resistor, 50k Ohm resistance with 10% tolerance, rated for 0.25W (250mW) power dissipation. Features 12 electrical turns and a linear taper, operating across a temperature range of -65°C to 150°C. Surface mountable with J-hook SMD termination, packaged in tape and reel. Dimensions are 4.8mm (length) x 5mm (depth) x 3.71mm (height). 300V voltage rating (AC/DC).
PackageSMD/SMT
Resistance50kR
Voltage Rating300V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3224J-1-503E technical specifications.
General
Package/Case
SMD/SMT
Color
Natural
Depth
5mm
Height
3.71mm
Lead Free
Lead Free
Length
4.8mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
250mW
Military Standard
Not
Mount
Surface Mount
Number of Turns
12
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3224
Taper
Linear
Technology
CERMET
Termination
J-Hook
Tolerance
10%
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
0.01oz
Width
3.7mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3224J-1-503E Datasheet
Download the complete datasheet for Bourns 3224J-1-503E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

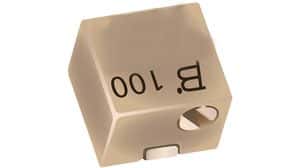

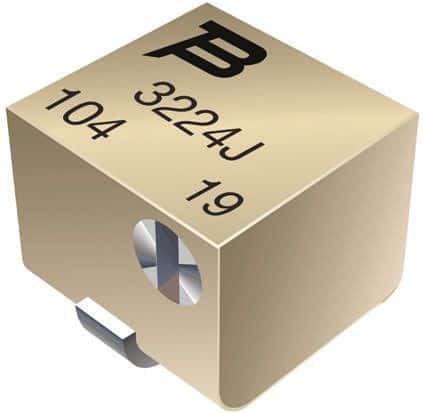

Product Images
