Cermet trimmer potentiometer, 200 ohm resistance with 10% tolerance, rated for 0.25W power dissipation and 300V DC. Features 12 turns for precise adjustment, a linear taper, and J-hook termination for surface mounting. Operates across a wide temperature range of -65°C to 150°C. This component is HALOGEN FREE and ROHS COMPLIANT.
Resistance200R
Voltage Rating300V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3224W-1-201E technical specifications.
General
Color
Natural
Depth
3.9mm
Height
5.3mm
Length
4.8mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
250mW
Military Standard
Not
Mount
Surface Mount
Number of Turns
12
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
200R
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3224
Taper
Linear
Technology
CERMET
Termination
J-Hook
Tolerance
10%
Type
Potentiometer
Voltage Rating
300V
DC Rated Voltage
300V
Weight
0.283g
Width
4.8mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3224W-1-201E Datasheet
Download the complete datasheet for Bourns 3224W-1-201E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

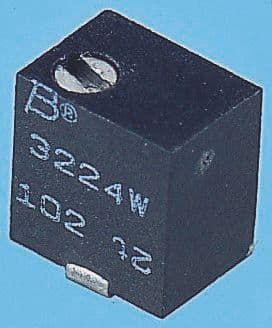

Product Images
