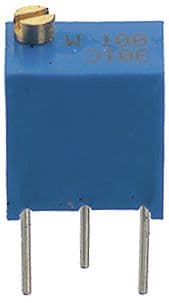

Cermet trimmer potentiometer with 500 Ohm resistance and 10% tolerance. Features a linear taper, 12 electrical turns, and a maximum power dissipation of 250mW. Designed for through-hole PCB mounting with pin terminals and a tin finish. Operates within a temperature range of -55°C to 150°C and has a voltage rating of 300V. Vertical actuator orientation with a screw type.
Resistance500R
Voltage Rating300V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Bourns 3266W-1-501LF technical specifications.
General
Actuator Orientation
Vertical
Actuator Type
SCREW
Depth
4.5mm
Height
4.5mm
Lead Diameter
0.5mm
Lead Free
Lead Free
Length
6.71mm
Manufacturer Series
3266
Max Operating Temperature
150°C
Max Power Dissipation
250mW
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Number of Turns
12
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
500R
Resistance Law
Linear
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3266
Taper
Linear
Technology
CERMET
Terminal Finish
Tin
Termination
Pin
Tolerance
10%
Type
Potentiometer
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
0.015oz
Width
6.71mm
Compliance
RoHS
Compliant
