Cermet trimmer potentiometer, 200 Ohm resistance with 10% tolerance. Features a linear taper and 12 turns for precise adjustment. Through-hole PCB mount with pin terminations, rated for 300V AC/DC and 250mW power dissipation. Operating temperature range from -55°C to 125°C. RoHS compliant and lead-free.
Resistance200R
Voltage Rating300V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Bourns 3266X-1-201LF technical specifications.
General
| Color | Blue |
| Depth | 4.5mm |
| Height | 4.5mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Length | 7.73mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Military Standard | Not |
| Mount | Through Hole, PCB |
| Number of Turns | 12 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 200R |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | 3266 |
| Taper | Linear |
| Technology | CERMET |
| Termination | Pin |
| Tolerance | 10% |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 300V |
| Weight | 0.015oz |
| Width | 6.71mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3266X-1-201LF Datasheet
Download the complete datasheet for Bourns 3266X-1-201LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

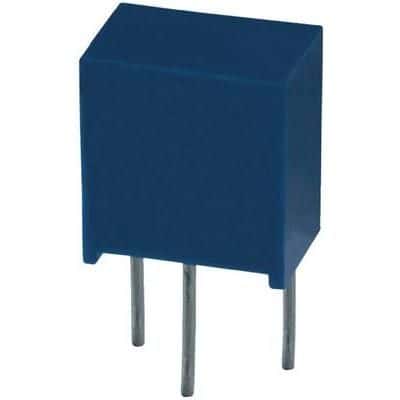

Product Images
