Cermet trimmer potentiometer, 100kΩ resistance with 10% tolerance. Features 0.25W power dissipation, 300V voltage rating, and 12 turns for precise adjustment. Surface mountable with gull wing terminations, this sealed cermet component operates from -65°C to 150°C. Dimensions are 6.35mm length, 4.32mm width, and 6.36mm depth. RoHS compliant.
PackageSMD/SMT
Resistance100kR
Voltage Rating300V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3269W-1-104LF technical specifications.
General
Package/Case
SMD/SMT
Depth
6.36mm
Height
0.293inch
Length
6.35mm
Max Operating Temperature
150°C
Max Power Dissipation
250mW
Military Standard
Not
Min Operating Temperature
-65°C
Mount
Surface Mount
Number of Turns
12
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
100kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
Trimpot® 3269 - Sealed
Taper
Linear
Technology
CERMET
Termination
Gull Wing
Tolerance
10%
Voltage Rating
300V
DC Rated Voltage
300V
Weight
0.425g
Width
4.32mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3269W-1-104LF Datasheet
Download the complete datasheet for Bourns 3269W-1-104LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

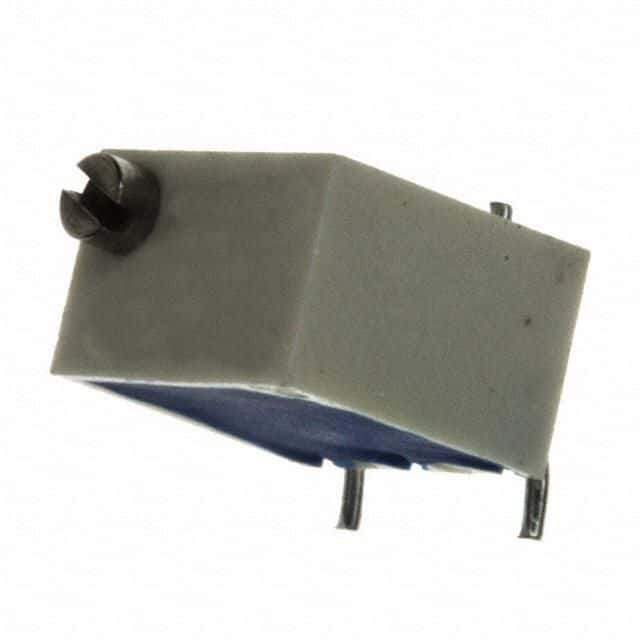

Product Images
