5k Ohm linear taper cermet trimmer resistor, 0.5W power rating, 400V DC rated voltage. Features 25 turns for precise adjustment, with a 10% tolerance. Through-hole mounting with PC pins, suitable for panel or PCB applications. Operates across a wide temperature range of -65°C to 150°C. RoHS compliant and lead-free.
Resistance5kR
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns 3292W-1-502LF technical specifications.
General
| Color | Blue |
| Depth | 3.81mm |
| Height | 0.375inch |
| Lead Free | Lead Free |
| Length | 9.53mm |
| Max Operating Temperature | 150°C |
| Military Standard | Not |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole, Panel, PCB |
| Number of Turns | 25 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Resistance | 5kR |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | Trimpot® 3292 - Sealed |
| Taper | Linear |
| Technology | CERMET |
| Termination | Pin |
| Tolerance | 10% |
| DC Rated Voltage | 400V |
| Weight | 0.025oz |
| Width | 9.53mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3292W-1-502LF Datasheet
Download the complete datasheet for Bourns 3292W-1-502LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

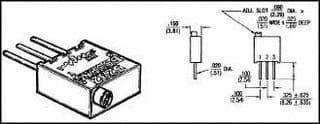

Product Images
