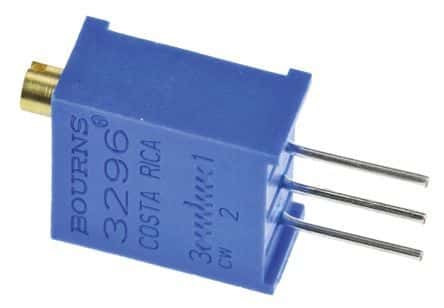

1kR cermet trimmer potentiometer with 10% resistance tolerance, featuring 25 turns and a linear taper. This through-hole mount component operates within a -55°C to 125°C temperature range, with a maximum power dissipation of 500mW and a 300V AC voltage rating. The trimmer is housed in a 0603 (1608 metric) blue case, measuring 9.53mm in length and width, 4.83mm in depth, and 11.55mm in height, with pin terminations. It is RoHS compliant and available in rail/tube packaging.
Package0603
Resistance1kR
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns 3296W-1-102LF technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Color
Blue
Depth
4.83mm
Height
11.55mm
Lead Free
Lead Free
Length
9.53mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Through Hole, Panel, PCB
Number of Turns
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
1kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3296
Taper
Linear
Technology
CERMET
Termination
Pin
Tolerance
10%
Voltage Rating (AC)
300V
Weight
0.03oz
Width
9.53mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3296W-1-102LF Datasheet
Download the complete datasheet for Bourns 3296W-1-102LF to view detailed technical specifications.
