Cermet trimmer potentiometer with 1M Ohm resistance and 10% tolerance. Features 25 electrical turns and a linear taper, rated for 0.5W maximum power dissipation and 300V voltage. Designed for through-hole mounting on PCBs, with a lead diameter of 0.5mm. Operates across a temperature range of -55°C to 125°C.
Resistance1MR
Voltage Rating300V
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns 3296W-1-105LF technical specifications.
General
Color
Blue
Depth
4.83mm
Height
0.395inch
Lead Diameter
0.5mm
Lead Free
Lead Free
Length
9.53mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Through Hole, Panel, PCB
Number of Turns
25
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
1MR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3296
Taper
Linear
Technology
CERMET
Termination
Pin
Tolerance
10%
Type
Potentiometer
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
0.03oz
Width
9.53mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3296W-1-105LF Datasheet
Download the complete datasheet for Bourns 3296W-1-105LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

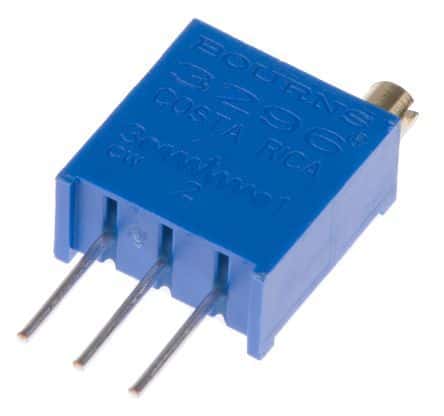

Product Images
