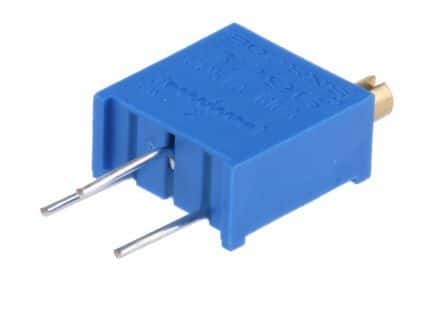

Cermet trimmer potentiometer with 100k Ohm resistance and 10% tolerance. Features a linear taper, 25 electrical turns, and a maximum power dissipation of 500mW. This through-hole mount component operates from -55°C to 125°C and has a voltage rating of 300V AC. The vertical actuator is screw-driven, and the unit is RoHS compliant with tin terminal finish.
Resistance100kR
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns 3296Y-1-104LF technical specifications.
General
Actuator Orientation
Vertical
Actuator Type
SCREW
Color
Blue
Depth
4.83mm
Height
11.55mm
Lead Free
Lead Free
Length
9.53mm
Manufacturer Series
3296
Max Operating Temperature
125°C
Max Power Dissipation
500mW
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole, Panel, PCB
Number of Turns
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
100kR
Resistance Law
Linear
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3296
Taper
Linear
Technology
CERMET
Terminal Finish
Tin
Termination
Pin
Tolerance
10%
Type
Potentiometer
Voltage Rating (AC)
300V
Weight
0.03oz
Width
9.53mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3296Y-1-104LF Datasheet
Download the complete datasheet for Bourns 3296Y-1-104LF to view detailed technical specifications.
