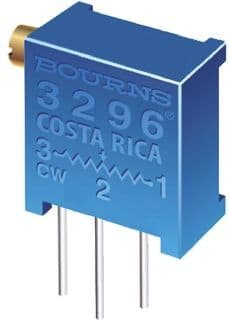

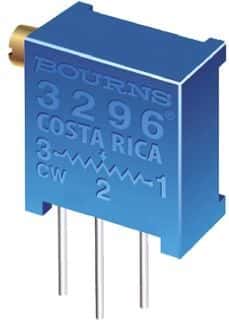

Cermet trimmer potentiometer with 10kR resistance and 10% tolerance. Features a linear taper, 0.5W power dissipation, and 25 electrical turns. Designed for through-hole mounting with pin terminals and a tin finish. Operates across a -55°C to 125°C temperature range with a 300V DC rating. Horizontal actuator orientation and a blue housing.
Resistance10kR
Voltage Rating300V
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns 3296Z-1-103LF technical specifications.
General
Actuator Orientation
Horizontal
Actuator Type
SCREW
Color
Blue
Depth
4.83mm
Height
10.03mm
Lead Free
Lead Free
Length
9.53mm
Manufacturer Series
3296
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Through Hole, Panel, PCB
Number of Turns
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Law
Linear
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3296
Taper
Linear
Technology
CERMET
Terminal Finish
Tin
Termination
Pin
Tolerance
10%
Type
Potentiometer
Voltage Rating
300V
DC Rated Voltage
300V
Weight
0.03oz
Width
9.53mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3296Z-1-103LF Datasheet
Download the complete datasheet for Bourns 3296Z-1-103LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
