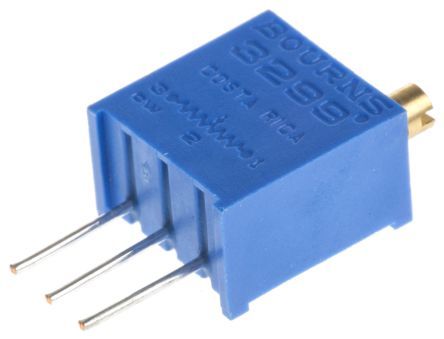

Cermet trimmer potentiometer featuring 100k Ohm resistance with a 10% tolerance and linear taper. This sealed, through-hole mount component offers 25 electrical turns and a maximum power dissipation of 500mW, operating across a temperature range of -55°C to 125°C. It has a 300V voltage rating and a tin terminal finish.
Resistance100kR
Voltage Rating300V
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns 3299W-1-104LF technical specifications.
General
Actuator Orientation
Vertical
Actuator Type
SCREW
Color
Blue
Depth
6.1mm
Height
6.1mm
Lead Free
Lead Free
Length
9.53mm
Manufacturer Series
3299
Max Operating Temperature
125°C
Max Power Dissipation
500mW
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole, Panel, PCB
Number of Turns
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
100kR
Resistance Law
Linear
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
Trimpot® 3299 - Sealed
Taper
Linear
Technology
CERMET
Terminal Finish
Tin
Termination
Pin
Tolerance
10%
Type
Potentiometer
Voltage Rating
300V
Voltage Rating (AC)
300V
Weight
0.035oz
Width
9.53mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3299W-1-104LF Datasheet
Download the complete datasheet for Bourns 3299W-1-104LF to view detailed technical specifications.
