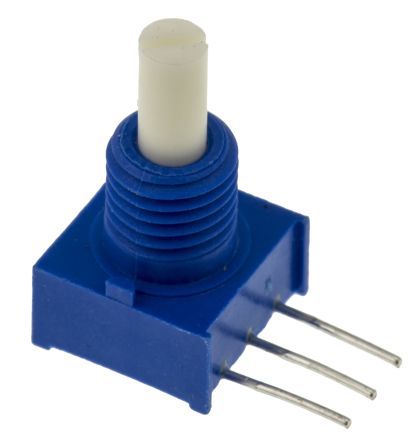

2k Ohm linear taper potentiometer with 20% resistance tolerance and 5% linearity. Features conductive plastic technology, a 200V voltage rating, and 250mW power dissipation. Designed for panel or through-hole mounting with pin terminations. Operating temperature range from -40°C to 125°C.
Resistance2kR
Voltage Rating200V
MountingPanel, Through Hole
Quick Jump:
Technical Specifications
Bourns 3310C-001-202L technical specifications.
General
Actuator Diameter
0.125inch
Actuator Length
0.5inch
Depth
9.53mm
Height
9.53mm
Lead Free
Lead Free
Length
17.88mm
Linearity
5%
Material
Plastic
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
250mW
Military Standard
Not
Mount
Panel, Through Hole
Number of Gangs
1
Number of Turns
1
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
2kR
Resistance Tolerance
20%
Resistor Type
Conductive Plastic
RoHS Compliant
Yes
Series
Pro Audio 3310
Taper
Linear
Technology
CONDUCTIVE PLASTIC
Termination
Pin
Tolerance
20%
Type
Potentiometer
Voltage Rating
200V
Voltage Rating (AC)
200V
DC Rated Voltage
200V
Weight
4.5g
Compliance
RoHS
Compliant
Datasheet
Bourns 3310C-001-202L Datasheet
Download the complete datasheet for Bourns 3310C-001-202L to view detailed technical specifications.
