Conductive plastic potentiometer featuring 50kR resistance with a 20% tolerance. This general-purpose variable resistor offers a linear taper, 1 electrical and 1 mechanical turn, and a 0.25W (250mW) power dissipation rating. Designed for panel or through-hole mounting with pin terminations, it operates within a temperature range of -40°C to 125°C and has a voltage rating of 200V. The blue plastic unit measures 17.88mm in length, 9.53mm in height, and 9.53mm in depth.
Resistance50kR
Voltage Rating200V
MountingPanel, Through Hole
Quick Jump:
Technical Specifications
Bourns 3310C-001-503L technical specifications.
General
Color
Blue
Depth
9.53mm
Height
9.53mm
Lead Free
Lead Free
Length
17.88mm
Linearity
5%
Material
Plastic
Max Operating Temperature
125°C
Max Power Dissipation
250mW
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Panel, Through Hole
Number of Gangs
1
Number of Turns
1
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
Resistor Type
Conductive Plastic
RoHS Compliant
Yes
Series
Pro Audio 3310
Taper
Linear
Technology
CONDUCTIVE PLASTIC
Termination
Pin
Tolerance
20%
Type
Potentiometer
Voltage Rating
200V
Voltage Rating (AC)
200V
DC Rated Voltage
200V
Weight
4.5g
Compliance
RoHS
Compliant
Datasheet
Bourns 3310C-001-503L Datasheet
Download the complete datasheet for Bourns 3310C-001-503L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

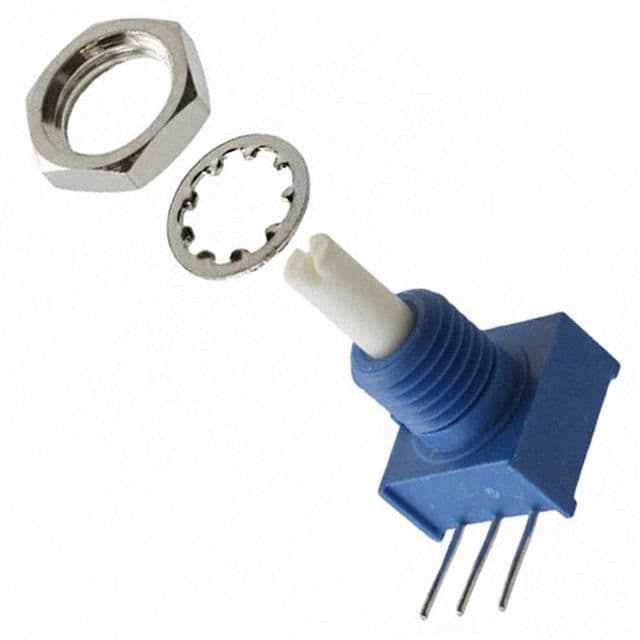

Product Images
