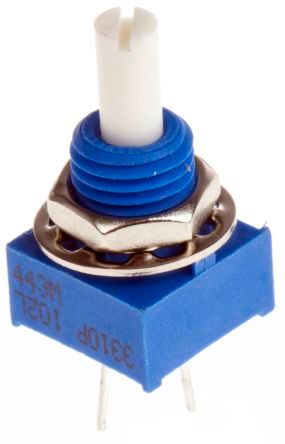

Linear rotary potentiometer featuring conductive plastic technology for 1kΩ resistance with a 20% tolerance. This single-turn, single-gang unit offers 5% linearity and a 250mW power dissipation rating. Designed for panel or through-hole mounting, it operates within a -40°C to 125°C temperature range and has a 200V AC/DC voltage rating. The actuator measures 0.125 inches in diameter and 0.5 inches in length, with overall dimensions of 9.53mm x 9.53mm x 17.88mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns 3310P-001-102L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Diameter | 0.125inch |
| Actuator Length | 0.5inch |
| Depth | 9.53mm |
| Height | 17.88mm |
| Length | 9.53mm |
| Linearity | 5% |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Mount | Panel, Through Hole |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 1kR |
| Resistance Tolerance | 20% |
| Resistor Type | Conductive Plastic |
| RoHS Compliant | Yes |
| Series | Pro Audio 3310 |
| Taper | Linear |
| Technology | CONDUCTIVE PLASTIC |
| Termination | Pin |
| Tolerance | 20% |
| Type | Potentiometer |
| Voltage Rating (AC) | 200V |
| DC Rated Voltage | 200V |
| Weight | 4.5g |
| RoHS | Compliant |
