Cermet trimmer potentiometer with 25k Ohm resistance and 10% tolerance. Features a 0.5W power rating and 300V voltage rating. Designed for through-hole mounting with pin terminations and a linear taper. Operates across a wide temperature range from -55°C to 150°C. Sealed construction ensures durability.
Resistance25kR
Voltage Rating300V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 3329H-1-253LF technical specifications.
General
| Diameter | 6.35mm |
| Height | 0.18inch |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 500mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Turns | 1 |
| Outside Diameter | 6.35mm |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 25kR |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | Trimpot® 3329 - Sealed |
| Taper | Linear |
| Technology | CERMET |
| Termination | Pin |
| Tolerance | 10% |
| Voltage Rating | 300V |
| Weight | 0.02oz |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3329H-1-253LF Datasheet
Download the complete datasheet for Bourns 3329H-1-253LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

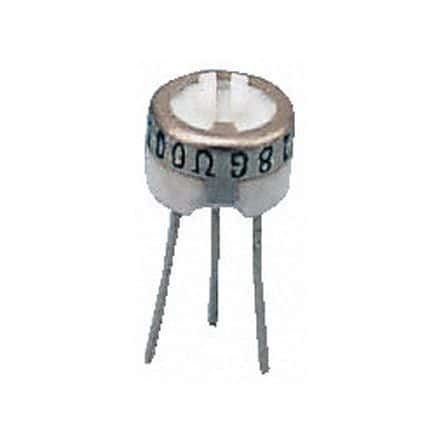

Product Images
