Sealed cermet trimmer potentiometer, 0.5W power rating, 2kΩ resistance with 10% tolerance. Features a single-turn linear taper, 3-pin configuration with gull wing terminations for surface mounting. Operates across a temperature range of -55°C to 125°C with a 300V DC voltage rating. Dimensions include a 6mm body length and 6.71mm overall length, packaged on tape and reel.
Resistance2kR
Voltage Rating300V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3361P-1-202GLF technical specifications.
General
Body Length
6mm
Color
Natural
Contact Plating
Tin, Matte
Depth
8.53mm
Height
0.192inch
Lead Free
Lead Free
Length
6.71mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Surface Mount
Number of Turns
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
2kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
Trimpot® 3361 - Sealed
Taper
Linear
Technology
CERMET
Termination
Gull Wing
Tolerance
10%
Voltage Rating
300V
DC Rated Voltage
300V
Weight
0.567g
Width
0.264inch
Compliance
RoHS
Compliant
Datasheet
Bourns 3361P-1-202GLF Datasheet
Download the complete datasheet for Bourns 3361P-1-202GLF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

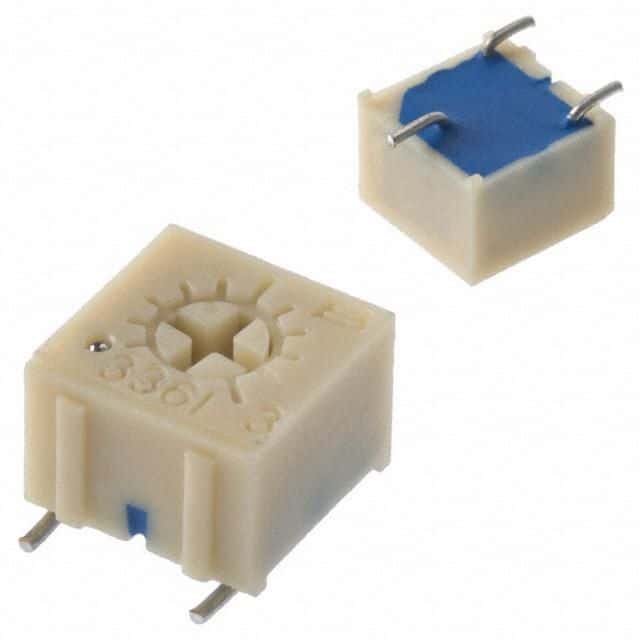

Product Images
