1k ohm linear taper cermet trimmer potentiometer with 10% resistance tolerance. Features a 0.5W power rating and 300V voltage rating. Designed for through-hole PCB mounting with PC pin termination. Operating temperature range from -55°C to 125°C. Sealed Trimpot® series construction.
Resistance1kR
Voltage Rating300V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Bourns 3362X-1-102LF technical specifications.
General
| Color | Blue |
| Height | 0.275inch |
| Lead Free | Lead Free |
| Length | 0.26inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole, PCB |
| Number of Turns | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 1kR |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | Trimpot® 3362 - Sealed |
| Taper | Linear |
| Technology | CERMET |
| Termination | Pin |
| Tolerance | 10% |
| Voltage Rating | 300V |
| Weight | 0.02oz |
| Width | 0.185inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3362X-1-102LF Datasheet
Download the complete datasheet for Bourns 3362X-1-102LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

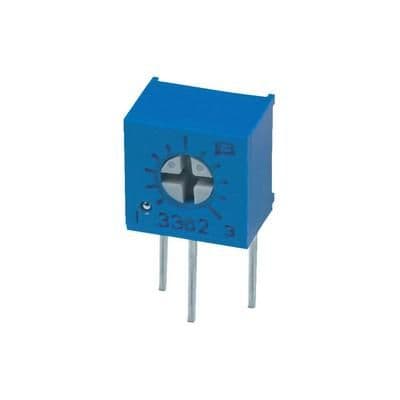

Product Images
