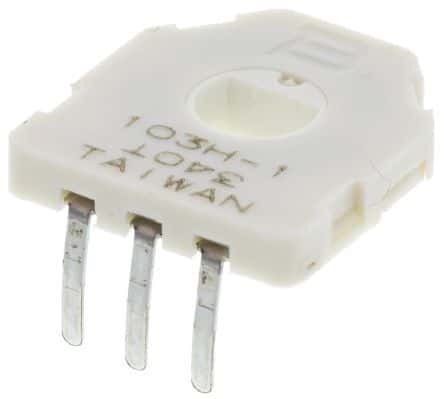

Analog rotary position sensor featuring a resistive output and a 10kR resistance with 30% tolerance. Designed for automotive applications, it operates with a 16V DC supply voltage and offers a linearity of 2%. This 3-pin component has a 1-turn configuration, a shaft hole actuator, and through-hole mounting. It functions across a wide temperature range from -40°C to 120°C and boasts a mechanical lifespan of 1 million cycles.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns 3382H-1-103 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Hole for Shaft |
| Depth | 1.93mm |
| Height | 12.04mm |
| Length | 11mm |
| Linearity | 2% |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 16V |
| Mount | Through Hole |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Operating Supply Voltage | 16V |
| Output | RESISTIVE |
| Output Type | Analog |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 30% |
| RoHS Compliant | Yes |
| Series | 3382 |
| Termination | PC Pin |
| Tolerance | 30% |
| DC Rated Voltage | 16V |
| RoHS | Compliant |
Download the complete datasheet for Bourns 3382H-1-103 to view detailed technical specifications.
