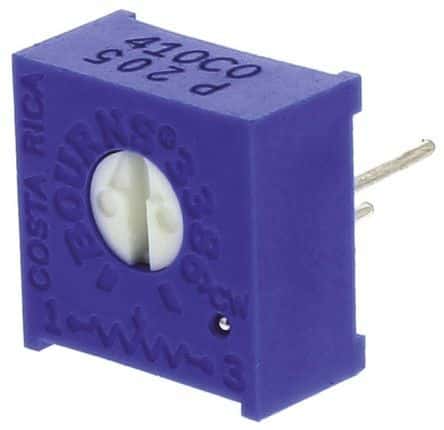

Cermet trimmer potentiometer with 2 MOhm resistance and 10% tolerance, featuring a linear taper. This through-hole mount component offers a maximum power dissipation of 500mW and a voltage rating of 300V DC. Operating across a temperature range of -55°C to 125°C, it is RoHS compliant and constructed with CERMET technology. The unit measures 9.53mm in length, width, and depth, with a height of 4.83mm.
Resistance2MR
Voltage Rating300V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Bourns 3386P-1-205LF technical specifications.
General
| Color | Blue |
| Depth | 9.53mm |
| Height | 4.83mm |
| Lead Free | Lead Free |
| Length | 9.53mm |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole, PCB |
| Number of Turns | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 2MR |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | Trimpot® 3386 - Sealed |
| Taper | Linear |
| Technology | CERMET |
| Termination | Pin |
| Tolerance | 10% |
| Voltage Rating | 300V |
| DC Rated Voltage | 500V |
| Weight | 0.03oz |
| Width | 9.53mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3386P-1-205LF Datasheet
Download the complete datasheet for Bourns 3386P-1-205LF to view detailed technical specifications.
