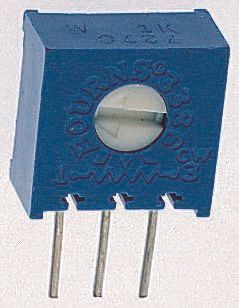

Sealed cermet trimmer potentiometer with 200 Ohm resistance and 10% tolerance. Features a 0.5W power rating and a 300V voltage rating. Designed for through-hole PCB mounting with side-entry adjustment and pin terminations. Operating temperature range from -55°C to 125°C.
Resistance200R
Voltage Rating300V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Bourns 3386W-1-201LF technical specifications.
General
Color
Blue
Depth
4.83mm
Height
0.375inch
Lead Diameter
0.5mm
Lead Free
Lead Free
Length
9.53mm
Max Operating Temperature
125°C
Max Power Dissipation
500mW
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Number of Turns
1
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
200R
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
Trimpot® 3386 - Sealed
Taper
Linear
Technology
CERMET
Termination
Pin
Tolerance
10%
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
0.03oz
Width
0.155inch
Compliance
RoHS
Compliant
Datasheet
Bourns 3386W-1-201LF Datasheet
Download the complete datasheet for Bourns 3386W-1-201LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
