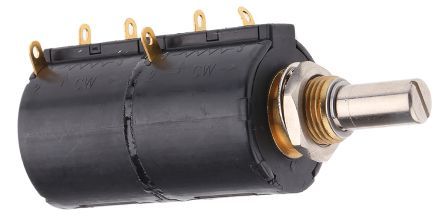

Wirewound potentiometer, 5kΩ resistance with 3% tolerance, rated for 2W maximum power dissipation. Features a 10-turn linear taper, 0.2% linearity, and operates across a -40°C to 125°C temperature range. This panel-mount component has a 0.25-inch actuator diameter and 0.813-inch actuator length, with solder terminations. Designed with two gangs, it is RoHS compliant.
Resistance5kR
MountingPanel
Quick Jump:
Technical Specifications
Bourns 3549S-2AA-502/502A technical specifications.
General
| Actuator Diameter | 0.25inch |
| Actuator Length | 0.813inch |
| Depth | 22.48mm |
| Height | 27.5mm |
| Length | 60.9mm |
| Linearity | 0.2% |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 2W |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Gangs | 2 |
| Number of Turns | 10 |
| Package Quantity | 5 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 5kR |
| Resistance Tolerance | 3% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | 3549 |
| Taper | Linear |
| Termination | Solder |
| Tolerance | 3% |
| Type | Potentiometer |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3549S-2AA-502/502A Datasheet
Download the complete datasheet for Bourns 3549S-2AA-502/502A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
