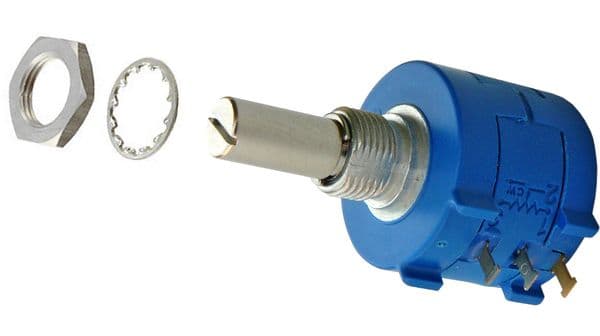

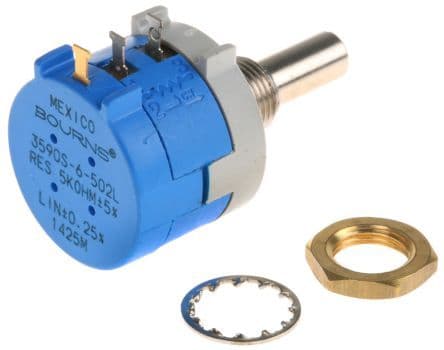

Wirewound linear potentiometer with 5kR resistance and 5% tolerance. Features a 2W power dissipation rating, operating temperature range of -40°C to 125°C, and 10 turns for precise adjustment. Designed for panel mounting with solder termination, this potentiometer has a 22.22mm diameter and a 0.236-inch actuator diameter. It is RoHS compliant and rated IP40 for environmental protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns 3590S-6-502L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Diameter | 0.236inch |
| Actuator Length | 0.812inch |
| Depth | 22.23mm |
| Diameter | 22.22mm |
| Height | 18.59mm |
| Length | 39.22mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2W |
| Military Standard | Not |
| Mount | Panel |
| Number of Gangs | 1 |
| Number of Turns | 10 |
| Package Quantity | 5 |
| Packaging | Tray |
| Radiation Hardening | No |
| Ratings | IP40 |
| Reach SVHC Compliant | No |
| Resistance | 5kR |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | 3590 |
| Taper | Linear |
| Termination | Solder |
| Tolerance | 5% |
| Type | Potentiometer |
| Weight | 19g |
| RoHS | Compliant |
