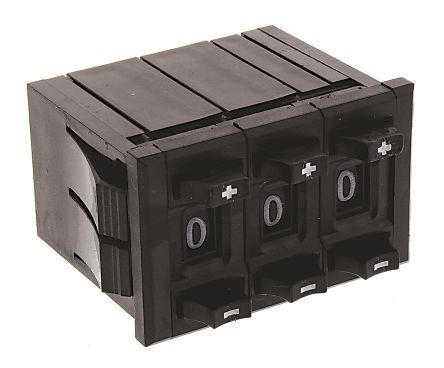

Cermet potentiometer, 2W power dissipation, 10kΩ resistance with 3% tolerance. Features a 10-turn design, panel mount, and solder termination. Operates within a temperature range of -25°C to 85°C, with a DC rated voltage of 500V. This RoHS compliant component offers a 3-gang configuration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns 3683S-1-103L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Depth | 23.62mm |
| Height | 23.62mm |
| Lead Free | Lead Free |
| Length | 37.08mm |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 2W |
| Military Standard | Not |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Number of Characters | 3 |
| Number of Gangs | 3 |
| Number of Turns | 10 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 3% |
| RoHS Compliant | Yes |
| Series | 3680 |
| Termination | Solder |
| Tolerance | 3% |
| Type | Potentiometer |
| DC Rated Voltage | 500V |
| Weight | 0.811301oz |
| RoHS | Compliant |
