Cermet potentiometer with 100k Ohm resistance and 10% tolerance, offering 2W power dissipation. Features a linear taper, single gang, and single turn design with solder terminations. Panel mountable with a 0.25-inch actuator diameter and 0.875-inch length, operating within a -1°C to 125°C temperature range. Rated IP40 and RoHS compliant, this component is suitable for general applications.
Resistance100kR
MountingPanel
Quick Jump:
Technical Specifications
Bourns 3852A-282-104AL technical specifications.
General
Actuator Diameter
0.25inch
Actuator Length
0.875inch
Contact Plating
Tin
Depth
19.05mm
Diameter
0.75inch
Lead Free
Lead Free
Length
28.55mm
Linearity
10%
Max Operating Temperature
125°C
Max Power Dissipation
2W
Military Standard
Not
Min Operating Temperature
-1°C
Mount
Panel
Number of Gangs
1
Number of Turns
1
Package Quantity
45
Packaging
Tray
Ratings
IP40
Reach SVHC Compliant
No
Resistance
100kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3852
Taper
Linear
Technology
CERMET
Termination
Solder
Tolerance
10%
Type
Potentiometer
DC Rated Voltage
500V
Weight
30g
Compliance
RoHS
Compliant
Datasheet
Bourns 3852A-282-104AL Datasheet
Download the complete datasheet for Bourns 3852A-282-104AL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

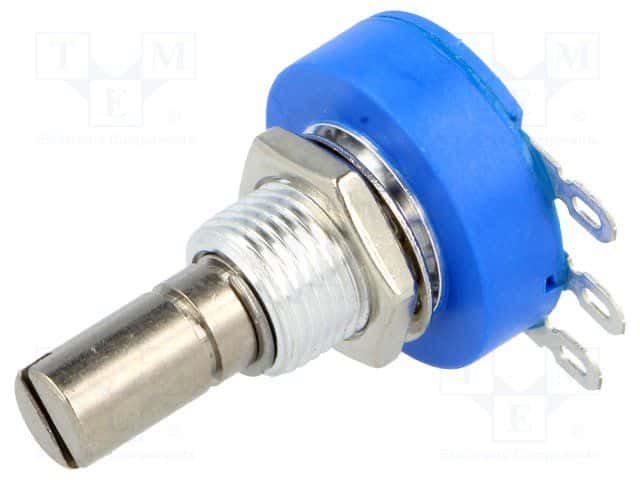

Product Images
