This SIP resistor network features 9 isolated elements, each rated at 150 Ohms with a 2% tolerance and 200mW power per element. Designed for through-hole mounting with a 2.54mm terminal pitch, this bussed circuit type component offers a 100V DC rated voltage and operates across a temperature range of -55°C to 125°C. The 10-pin package has a length of 0.984 inches, a width of 0.085 inches, and a height of 0.195 inches, with tin contact plating. This RoHS compliant component is supplied in bulk packaging.
PackageSIP
Resistance150R
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 4310R-101-151LF technical specifications.
General
| Package/Case | SIP |
| Circuit Type | Bussed |
| Contact Plating | Tin |
| Height | 0.195inch |
| Lead Free | Lead Free |
| Length | 0.984inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 10 |
| Number of Elements | 9 |
| Number of Resistors | 9 |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Per Element | 200mW |
| Reach SVHC Compliant | No |
| Resistance | 150R |
| Resistance Tolerance | 2% |
| RoHS Compliant | Yes |
| Series | 4300R |
| Terminal Pitch | 2.54mm |
| Termination | Pin |
| Thickness | 2.16mm |
| Tolerance | 2% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 0.085inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 4310R-101-151LF Datasheet
Download the complete datasheet for Bourns 4310R-101-151LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

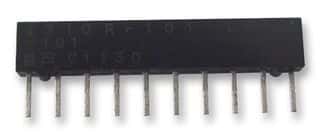

Product Images
