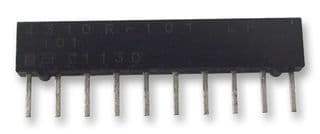

Bussed resistor network, through-hole mount, featuring thick film technology and a SIP package. Offers 2.2kΩ resistance with a 2% tolerance and a 100V voltage rating. Each element is rated at 200mW, with a total power rating of 1.25W. Operating temperature range is -55°C to 125°C, with a terminal pitch of 2.54mm. RoHS compliant.
PackageSIP
Resistance2.2kR
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 4310R-101-222LF technical specifications.
General
Package/Case
SIP
Circuit Type
Bussed
Depth
2.16mm
Height
0.195inch
Lead Free
Lead Free
Length
24.99mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
10
Number of Elements
9
Number of Resistors
9
Package Quantity
20
Packaging
Bulk
Power Per Element
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
2.2kR
Resistance Tolerance
2%
RoHS Compliant
Yes
Series
4300R
Technology
THICK FILM
Terminal Pitch
2.54mm
Termination
Pin
Thickness
2.16mm
Tolerance
2%
Voltage Rating
100V
DC Rated Voltage
100V
Width
0.085inch
Compliance
RoHS
Compliant
Datasheet
Bourns 4310R-101-222LF Datasheet
Download the complete datasheet for Bourns 4310R-101-222LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
