Thick film resistor network featuring isolated circuit configuration. Offers 10k Ohm resistance with 2% tolerance and a power rating of 300mW per element. Operates across a temperature range of -55°C to 125°C with a voltage rating of 100V. Packaged in a 4-pin SIP (Single In-line Package) with a 2.54mm terminal pitch, suitable for through-hole mounting. Conformal coating provides environmental protection.
PackageSIP
Resistance10kR
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 4604X-102-103LF technical specifications.
General
| Package/Case | SIP |
| Circuit Type | Isolated |
| Height | 0.2inch |
| Lead Pitch | 2.54mm |
| Length | 0.398inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 2 |
| Number of Resistors | 2 |
| Package Quantity | 200 |
| Packaging | Bulk |
| Power Per Element | 300mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 2% |
| RoHS Compliant | Yes |
| Series | 4600X |
| Technology | THICK FILM |
| Terminal Pitch | 2.54mm |
| Termination | Pin |
| Tolerance | 2% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 4604X-102-103LF Datasheet
Download the complete datasheet for Bourns 4604X-102-103LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

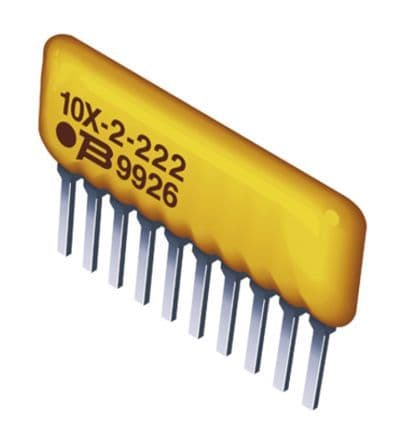

Product Images
