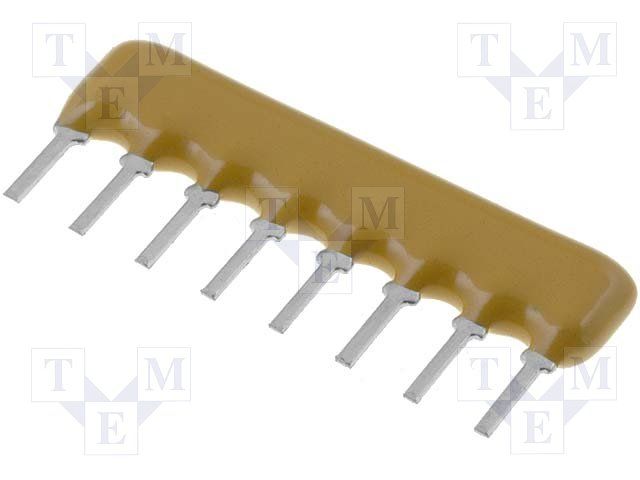

Thick film resistor network featuring 7 isolated elements with a resistance of 22kR and 2% tolerance. This 8-pin SIP component offers a power rating of 200mW per element and a voltage rating of 100V. Designed for through-hole mounting with a 2.54mm terminal pitch, it operates across a temperature range of -55°C to 125°C. The bussed circuit configuration and conformal coating ensure reliable performance.
PackageSIP
Resistance22kR
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 4608X-101-223LF technical specifications.
General
Package/Case
SIP
Circuit Type
Bussed
Depth
2.49mm
Height
0.2inch
Lead Free
Lead Free
Lead Length
3.43mm
Lead Pitch
2.54mm
Length
20.27mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
8
Number of Elements
7
Number of Resistors
7
Package Quantity
200
Packaging
Bulk
Power Per Element
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
22kR
Resistance Tolerance
2%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
4600X
Technology
THICK FILM
Terminal Pitch
2.54mm
Termination
Pin
Thickness
2.49mm
Tolerance
2%
Voltage Rating
100V
Voltage Rating (AC)
100V
DC Rated Voltage
100V
Width
0.098inch
Compliance
RoHS
Compliant
