Thick film resistor network with 9 isolated elements, offering 100k Ohm resistance and 2% tolerance. Features a bussed circuit type within a 10-pin SIP package, designed for through-hole mounting with a 2.54mm terminal pitch. Rated for 100V DC/AC, operating from -55°C to 125°C, with a power rating of 200mW per element. Conformal coated with a bulk package quantity of 200.
PackageSIP
Resistance100kR
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 4610X-101-104LF technical specifications.
General
Package/Case
SIP
Circuit Type
Bussed
Depth
2.49mm
Height
0.2inch
Lead Free
Lead Free
Lead Length
3.43mm
Lead Pitch
2.54mm
Length
25.35mm
Material
Resin, Epoxy
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
10
Number of Elements
9
Number of Resistors
9
Package Quantity
200
Packaging
Bulk
Power Per Element
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
100kR
Resistance Tolerance
2%
RoHS Compliant
Yes
Series
4600X
Technology
THICK FILM
Terminal Pitch
2.54mm
Termination
Pin
Thickness
0.096inch
Tolerance
2%
Voltage Rating
100V
Voltage Rating (AC)
100V
DC Rated Voltage
100V
Width
0.098inch
Compliance
RoHS
Compliant
Datasheet
Bourns 4610X-101-104LF Datasheet
Download the complete datasheet for Bourns 4610X-101-104LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

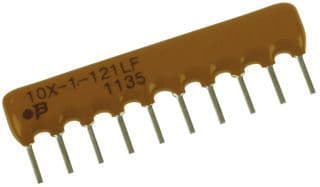

Product Images
