Bussed resistor network, through-hole mount, SIP package. Features thick film technology with a 2.2kΩ resistance and 2% tolerance. Rated for 100V, with 9 isolated elements each dissipating 200mW. Operating temperature range from -55°C to 125°C. RoHS compliant.
PackageSIP
Resistance2.2kR
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 4610X-101-222LF technical specifications.
General
| Package/Case | SIP |
| Circuit Type | Bussed |
| Depth | 2.49mm |
| Height | 0.2inch |
| Lead Free | Lead Free |
| Lead Length | 3.43mm |
| Lead Pitch | 2.54mm |
| Length | 25.35mm |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 10 |
| Number of Elements | 9 |
| Number of Resistors | 9 |
| Package Quantity | 200 |
| Packaging | Bulk |
| Power Per Element | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 2.2kR |
| Resistance Tolerance | 2% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | 4600X |
| Technology | THICK FILM |
| Terminal Pitch | 2.54mm |
| Termination | Pin |
| Thickness | 2.49mm |
| Tolerance | 2% |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 100V |
| DC Rated Voltage | 100V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 4610X-101-222LF Datasheet
Download the complete datasheet for Bourns 4610X-101-222LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

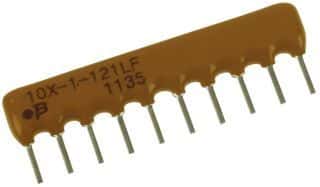

Product Images
