Isolated resistor network featuring thick film technology, offering 5 elements with 100 ohms resistance and 2% tolerance. Rated for 100V and 300mW per element, this component operates across a -55°C to 125°C temperature range. Designed for through-hole mounting in a SIP package with a 2.54mm terminal pitch, it is RoHS compliant.
PackageSIP
Resistance100R
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 4610X-102-101LF technical specifications.
General
Package/Case
SIP
Circuit Type
Isolated
Depth
2.49mm
Height
0.2inch
Lead Free
Lead Free
Lead Length
3.43mm
Lead Pitch
2.54mm
Length
25.35mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
10
Number of Elements
5
Number of Resistors
5
Package Quantity
200
Packaging
Bulk
Power Per Element
300mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
100R
Resistance Tolerance
2%
RoHS Compliant
Yes
Series
4600X
Technology
THICK FILM
Terminal Pitch
2.54mm
Termination
Pin
Thickness
2.49mm
Tolerance
2%
Voltage Rating
100V
Width
0.098inch
Compliance
RoHS
Compliant
Datasheet
Bourns 4610X-102-101LF Datasheet
Download the complete datasheet for Bourns 4610X-102-101LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

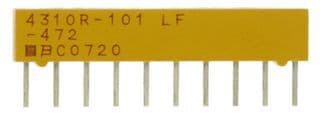

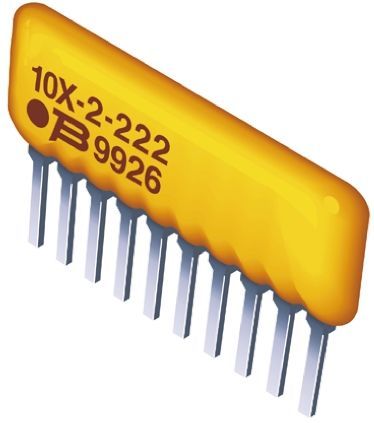

Product Images
