Surface mount resistor network featuring thick film technology and isolated circuit configuration. Offers 8 resistive elements with a resistance value of 15kR and a tolerance of 2%. Rated for 160mW per element and 50V DC, with a temperature coefficient of ±100ppm/°C. Housed in a 16-pin SOIC package with gull wing SMD terminations and tin contact plating.
PackageSOIC
Resistance15kR
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Bourns 4816P-T01-153LF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Bourns 4816P-T01-153LF technical specifications.
General
| Package/Case | SOIC |
| Circuit Type | Isolated |
| Contact Plating | Tin |
| Depth | 7.62mm |
| Height | 0.085inch |
| Lead Free | Lead Free |
| Length | 11.18mm |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 16 |
| Number of Elements | 8 |
| Number of Resistors | 8 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Per Element | 160mW |
| Reach SVHC Compliant | No |
| Resistance | 15kR |
| Resistance Tolerance | 1% |
| RoHS Compliant | Yes |
| Series | 4800P |
| Technology | THICK FILM |
| Terminal Pitch | 1.27mm |
| Termination | Gull Wing |
| Thickness | 2.03mm |
| Tolerance | 2% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.22inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 4816P-T01-153LF Datasheet
Download the complete datasheet for Bourns 4816P-T01-153LF to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

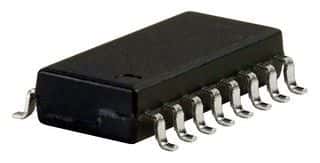

Product Images
