General purpose fixed inductor featuring 100µH inductance with a 20% tolerance. This ferrite-core component offers a 2A current rating and a low DC resistance of 216mΩ. Designed for through-hole mounting with axial leads and tin plating, it operates within a temperature range of -55°C to 105°C. The unshielded, axial package has a diameter of 9.65mm and a length of 1.25 inches.
PackageAxial
Current Rating2A
MountingThrough Hole
Inductance100uH
Quick Jump:
Technical Specifications
Bourns 5250-RC technical specifications.
General
Package/Case
Axial
Contact Plating
Tin
Core Material
Ferrite
Current Rating
2A
DC Current
2A
DC Resistance (DCR)
216mR
Diameter
9.65mm
Inductance
100uH
Inductance Tolerance
20%
Lead Free
Lead Free
Lead/Base Style
Axial
Length
1.25inch
Max DC Current
2A
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
28.5MHz
Series
5200
Shielding
Unshielded
Termination
Axial
Test Frequency
1kHz
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Bourns 5250-RC Datasheet
Download the complete datasheet for Bourns 5250-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

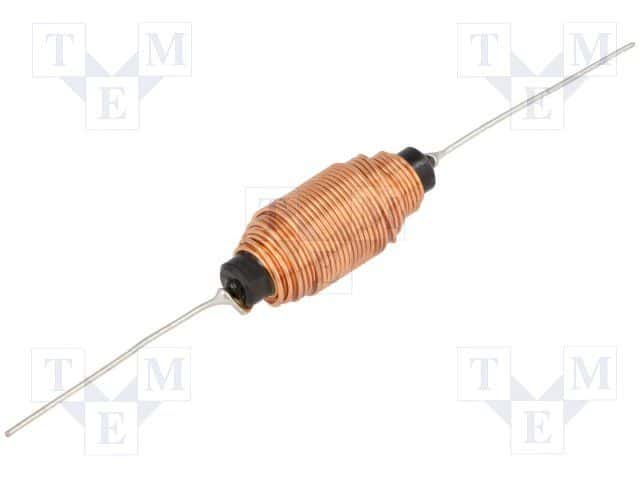

Product Images
