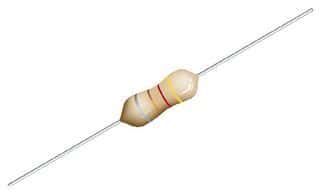

General purpose inductor featuring 1µH inductance with a 10% tolerance. This ferrite-core, unshielded component offers a 3.3A DC current rating and a saturation current of 3A. Designed with axial leads for through-hole mounting, it has a DC resistance of 18mΩ and operates within a temperature range of -55°C to 105°C. The inductor has a self-resonant frequency of 190MHz and is RoHS compliant.
PackageAxial
Resistance0.018R
Current Rating3.3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 5300-01-RC technical specifications.
General
| Package/Case | Axial |
| Contact Plating | Tin |
| Core Material | Ferrite |
| Current Rating | 3.3A |
| DC Current | 3.3A |
| DC Resistance (DCR) | 18mR |
| Diameter | 4.06mm |
| Inductance | 1uH |
| Inductance Tolerance | 10% |
| Lead/Base Style | Axial |
| Length | 12.7mm |
| Max DC Current | 3.3A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bag |
| Reach SVHC Compliant | No |
| Resistance | 0.018R |
| RoHS Compliant | Yes |
| Saturation Current | 3A |
| Self Resonant Frequency | 190MHz |
| Series | 5300 |
| Shielding | Unshielded |
| Termination | Axial |
| Test Frequency | 7.96MHz |
| Tolerance | 10% |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 5300-01-RC Datasheet
Download the complete datasheet for Bourns 5300-01-RC to view detailed technical specifications.
