Precision rotary potentiometer featuring a 1kΩ resistance with a 10% tolerance and linear taper. This general-purpose variable resistor offers 1 turn, a 1.5W power dissipation, and a 1% linearity. Designed for panel mounting with a 10.44mm bushing, it operates within a -40°C to 125°C temperature range and has a 300V AC / 500V DC voltage rating.
Resistance1kR
MountingPanel, Bushing
Quick Jump:
Technical Specifications
Bourns 6657S-1-102 technical specifications.
General
Actuator Diameter
0.2497inch
Actuator Length
0.875inch
Diameter
33.34mm
Length
38.69mm
Linearity
1%
Max Operating Temperature
125°C
Max Power Dissipation
1.5W
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Panel, Bushing
Mounting Hole Diameter
10.44mm
Number of Gangs
1
Number of Turns
1
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
1kR
Resistance Tolerance
10%
Resistor Type
Conductive Plastic
RoHS Compliant
Yes
Series
6657
Taper
Linear
Termination
Turret
Tolerance
10%
Type
Potentiometer
Voltage Rating (AC)
300V
DC Rated Voltage
500V
Weight
32g
Compliance
RoHS
Compliant
Datasheet
Bourns 6657S-1-102 Datasheet
Download the complete datasheet for Bourns 6657S-1-102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

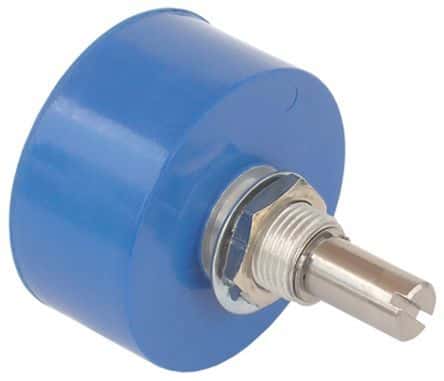

Product Images
