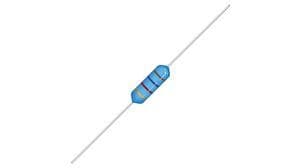

General purpose fixed inductor featuring 100µH inductance with a tight 5% tolerance. This axial-leaded, through-hole component utilizes a ferrite core and offers a DC current rating of 275mA with a low DC resistance of 2.5Ω. Operating across a wide temperature range from -55°C to 105°C, it is supplied on tape and reel, is RoHS compliant, and has a self-resonant frequency of 4.8MHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns 77F101J-TR-RC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Axial |
| Contact Plating | Copper, Tin, Silver |
| Core Material | Ferrite |
| DC Current | 275mA |
| DC Resistance (DCR) | 2.5R |
| Diameter | 3.99mm |
| Inductance | 100uH |
| Inductance Tolerance | 5% |
| Lead/Base Style | Axial |
| Length | 10.41mm |
| Max DC Current | 275mA |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Q Factor | 30 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 4.8MHz |
| Series | 77F |
| Shielding | Unshielded |
| Termination | Axial |
| Test Frequency | 2.52MHz |
| Tolerance | 5% |
| RoHS | Compliant |
