SPST tactile switch featuring a round, non-illuminated or illuminated rubber actuator with a 1.65mm length. This surface-mount component offers a 100mA contact current rating at 16VAC/16VDC, with gold contacts plated in silver. Designed for a 300gf operating force and 100,000 mechanical cycles, it utilizes J-hook terminations and operates within a -55°C to 125°C temperature range.
Current Rating100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 7914J-1-000E technical specifications.
General
Actuator Length
1.65mm
Actuator Material
Rubber
Actuator Type
Standard
Contact Current Rating
100mA
Contact Material
Gold
Contact Plating
Silver
Current Rating
100mA
Depth
5mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
5mm
Max Current Rating
100mA
Max Operating Temperature
125°C
Max Voltage Rating (AC)
16V
Max Voltage Rating (DC)
16V
Mechanical Life
100000Cycles
Min Operating Temperature
-55°C
Mount
Surface Mount
Operating Force
300gf
Orientation
Straight
Package Quantity
500
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
7914
Switch Function
Off-Mom
Termination
J-Hook
Throw Configuration
SPST
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Bourns 7914J-1-000E Datasheet
Download the complete datasheet for Bourns 7914J-1-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

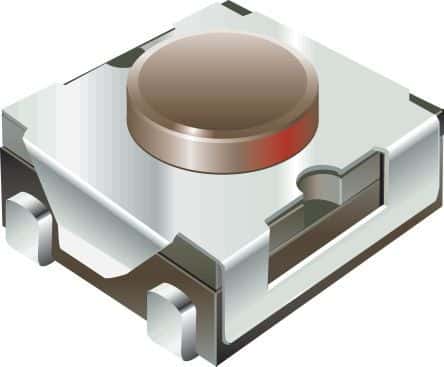

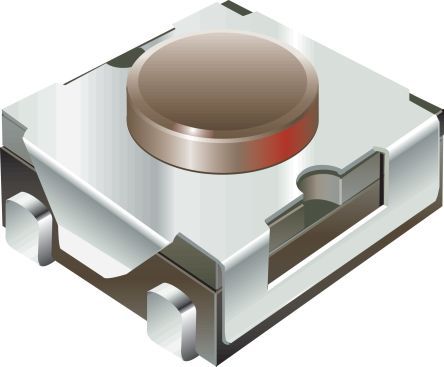

Product Images
