Two-line data line filter with 2.3A current rating, 30mH inductance, and 330mR DC resistance. Features through-hole mounting with a pin lead style and 22.86mm lead pitch. Operates across a -55°C to 105°C temperature range. RoHS compliant and lead-free.
Current2.3A
Current Rating2.3A
MountingThrough Hole
Inductance30mH
Quick Jump:
Technical Specifications
Bourns 8109-RC technical specifications.
General
| Current | 2.3A |
| Current Rating | 2.3A |
| DC Current | 2.3A |
| DC Resistance (DCR) | 330mR |
| Depth | 20.57mm |
| Diameter | 34.29mm |
| Height | 1.45inch |
| Inductance | 30mH |
| Lead Free | Lead Free |
| Lead Pitch | 22.86mm |
| Lead/Base Style | Pin |
| Length | 34.29mm |
| Max DC Current | 2.3A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Lines | 2 |
| Package Quantity | 240 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 8100 |
| Shielding | Unshielded |
| Test Frequency | 1kHz |
| Width | 20.32mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 8109-RC Datasheet
Download the complete datasheet for Bourns 8109-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

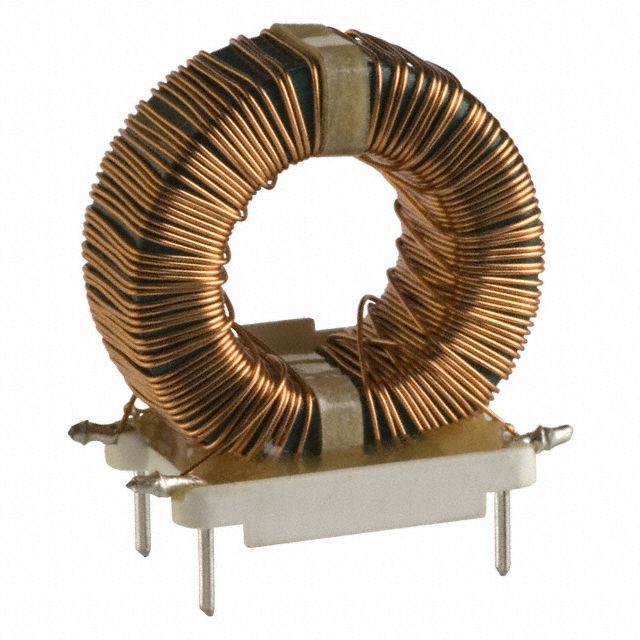

Product Images
