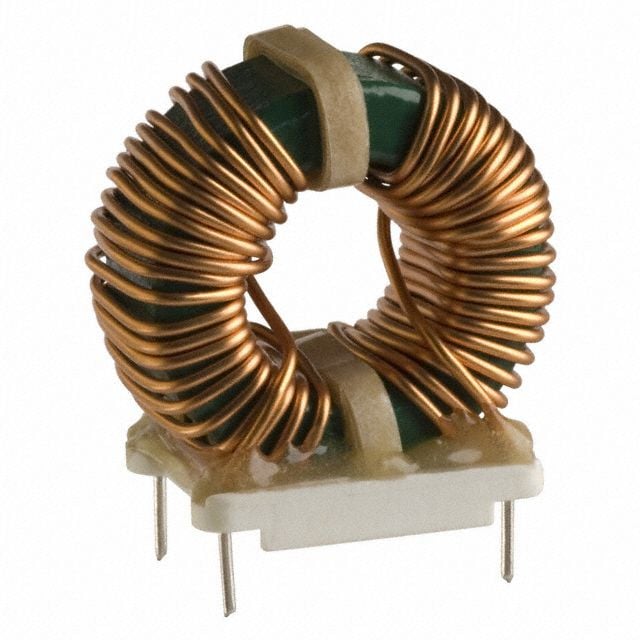

Dual common mode choke with 5mH inductance per line, rated for 8.9A DC current. Features low 22mΩ DC resistance and operates across a wide temperature range from -55°C to 105°C. Designed for through-hole mounting with a 22.86mm lead pitch, this unshielded component is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns 8113-RC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 8.9A |
| DC Current | 8.9A |
| DC Resistance (DCR) | 22mR |
| Depth | 20.57mm |
| Height | 38.1mm |
| Inductance | 5mH |
| Lead Free | Lead Free |
| Lead Pitch | 22.86mm |
| Lead/Base Style | Pin |
| Length | 36.83mm |
| Max Current Rating | 8.9A |
| Max DC Current | 8.9A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Lines | 2 |
| Package Quantity | 243 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 8100 |
| Shielding | Unshielded |
| Termination | Through Hole |
| Test Frequency | 1kHz |
| Width | 20.32mm |
| RoHS | Compliant |
