Isolated resistor network featuring 4 elements, each rated at 0.062W and 33 ohms with a 5% tolerance. This thick film component operates within a temperature range of -55°C to 125°C and has a voltage rating of 50V. Designed for surface mount applications, it utilizes a 1206 case code (3216 metric) with tin contact plating and concave terminations. The component is RoHS compliant and supplied in tape and reel packaging.
Package1206
Resistance33R
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Bourns CAT16-330J4LF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Bourns CAT16-330J4LF technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Circuit Type | Isolated |
| Contact Plating | Tin |
| Depth | 1.55mm |
| Height | 0.6mm |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Resistors | 4 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Power Per Element | 62.5mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 33R |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | CAT16 |
| Technology | THICK FILM |
| Terminal Pitch | 0.8mm |
| Termination | Concave |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 1.55mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CAT16-330J4LF Datasheet
Download the complete datasheet for Bourns CAT16-330J4LF to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

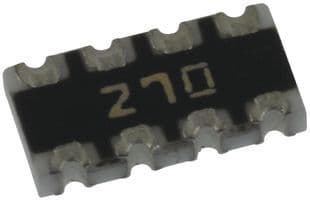

Product Images
