Surface mount thick film resistor array featuring 4 isolated elements, each with 10k Ohm resistance and 5% tolerance. This 8-pin component operates within a -55°C to +125°C temperature range, offering 50V voltage rating and 62.5mW power per element. The 1206 (3216 metric) case size with convex termination is supplied on tape and reel.
Package1206
Resistance10kR
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CAY16-103J4LF technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Circuit Type
Isolated
Depth
1.6mm
Height
0.024inch
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Circuits
4
Number of Contacts
8
Number of Elements
4
Number of Resistors
4
Package Quantity
5000
Packaging
Tape and Reel
Power Per Element
62.5mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
5%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CAY16
Technology
THICK FILM
Terminal Pitch
0.8mm
Termination
Convex
Tolerance
5%
Voltage Rating
50V
DC Rated Voltage
25V
Weight
2.012816mg
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Bourns CAY16-103J4LF Datasheet
Download the complete datasheet for Bourns CAY16-103J4LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

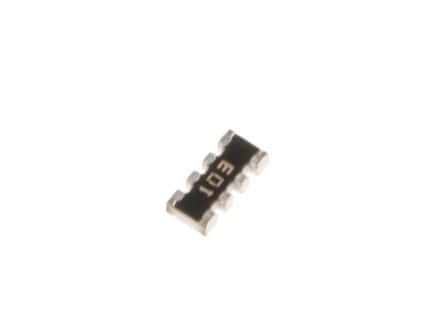

Product Images
