Bourns
CC322522A-150K

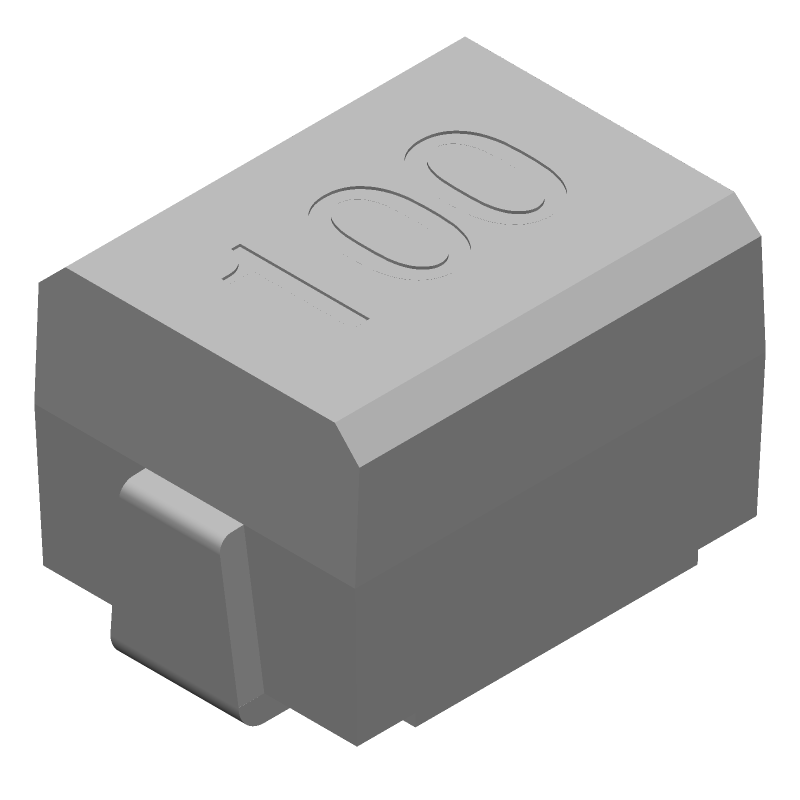

Inductor General Purpose Chip Wirewound 15uH 10% 2.52MHz 15Q-Factor Ferrite 0.45A 1.45Ohm DCR 1210 Automotive T/R
Quick Jump:
Technical Specifications
Bourns CC322522A-150K technical specifications.
General
| Max Operating Temperature | 150 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Package Length | 2.9 |
| Tolerance | 10 |
| Package Width | 2.5 |
| Package Height | 2.2 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 15 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 1.45 |
| Rated Current-Max | 0.45 |
| Test Frequency | 2.52 |
| Self Resonance Frequency | 25 |
| Quality Factor-Min (at L-nom) | 15 |
Compliance
| RoHS | Yes |
| REACH | unknown |
| Military Spec | False |
Datasheet
Bourns CC322522A-150K Datasheet
Download the complete datasheet for Bourns CC322522A-150K to view detailed technical specifications.
No datasheet is available for this part.
