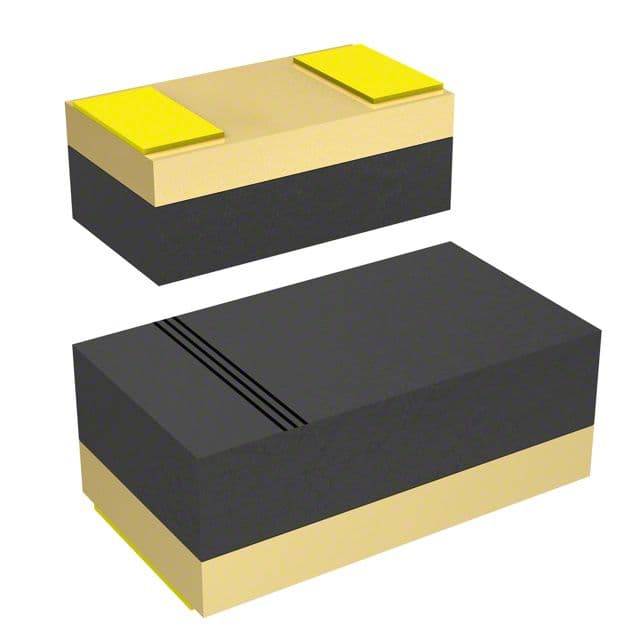

Surface mount rectifier diode featuring a 100V repetitive reverse voltage (Vrrm) and 150mA average rectified current. This silicon diode offers a 4ns reverse recovery time and a maximum forward surge current of 4A. Encased in a compact 0603 (1608 metric) leadless plastic package with gold contact plating, it operates across a temperature range of -40°C to 125°C. RoHS compliant and designed for general-purpose rectification.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns CD0603-S01575 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Average Rectified Current | 150mA |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Contact Plating | Gold |
| Forward Current | 150mA |
| Height | 0.033inch |
| Length | 0.07inch |
| Max Forward Surge Current (Ifsm) | 4A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Current | 2.5uA |
| Max Reverse Leakage Current | 2.5uA |
| Max Reverse Voltage (DC) | 75V |
| Max Surge Current | 4A |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 4A |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 4ns |
| RoHS Compliant | Yes |
| Width | 0.039inch |
| RoHS | Compliant |
