Bidirectional Transient Voltage Suppressor (TVS) diode, 5V reverse standoff voltage, featuring 5.1A peak pulse current and 15V clamping voltage. This silicon TVS diode offers ESD protection with a low leakage current of 2uA. Designed for surface mount applications, it utilizes a 0603 package with gold contact plating and operates across a temperature range of -40°C to 125°C.
Package0603
Capacitance15pF
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Bourns CD0603-T05C technical specifications.
General
| Capacitance | 15pF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Clamping Voltage | 15V |
| Contact Plating | Gold |
| Diode Type | ZENER |
| Direction | Bidirectional |
| ESD Protection | Yes |
| Leakage Current | 2uA |
| Min Breakdown Voltage | 5.1V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reverse Leakage Current | 2uA |
| Max Surge Current | 5.1A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 5.1A |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5.1V |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CD0603-T05C Datasheet
Download the complete datasheet for Bourns CD0603-T05C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

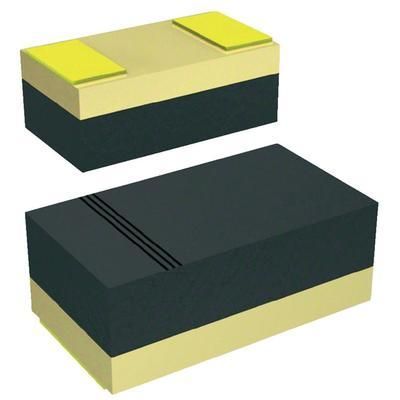

Product Images
