The CD2320-B1600 is a single-element bridge rectifier from Bourns, featuring a maximum repetitive reverse voltage of 600V and a forward current rating of 1A. It is designed for surface mount applications, with a package type of R-PDFP-F4 and a maximum operating temperature of 175°C. The device is RoHS compliant and available in tape and reel packaging.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CD2320-B1600 technical specifications.
General
| Package/Case | SMD/SMT |
| Contact Plating | Tin |
| Forward Current | 1A |
| Height | 1.16mm |
| Length | 5.4mm |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 5uA |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Reach SVHC Compliant | No |
| Reverse Voltage (DC) | 420V |
| RoHS Compliant | Yes |
| Width | 5.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns CD2320-B1600 Datasheet
Download the complete datasheet for Bourns CD2320-B1600 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

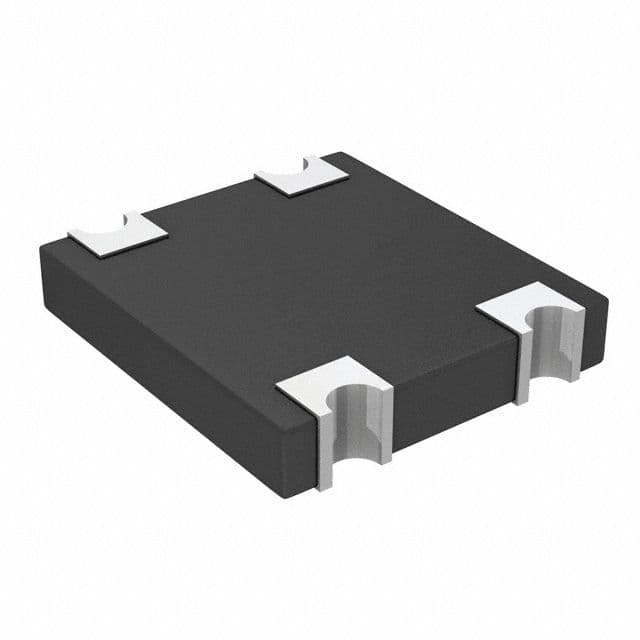

Product Images
